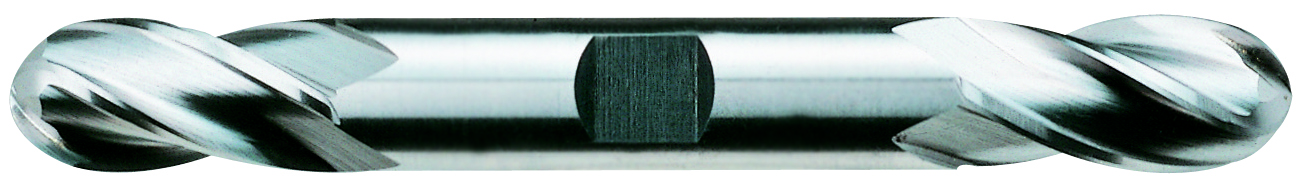

Picture of YG-1 46289CN Dia 1/8 SH 0.3750 LOC 0.3750 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball NoseBall General Purpose

YG-1 46289CN Dia 1/8 SH 0.3750 LOC 0.3750 OAL3.0620 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball NoseBall General Purpose

Part Number: YG-46289CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1202556
Vendor: Sussex Tool and Supply
$55.57
YG-1 Standard Helix End Mill Cobalt TiN Ball Nose Ball Standard Flute Flutes 4 Double End GENERAL Purpose Cobalt Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.0620 77.77MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Double End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
