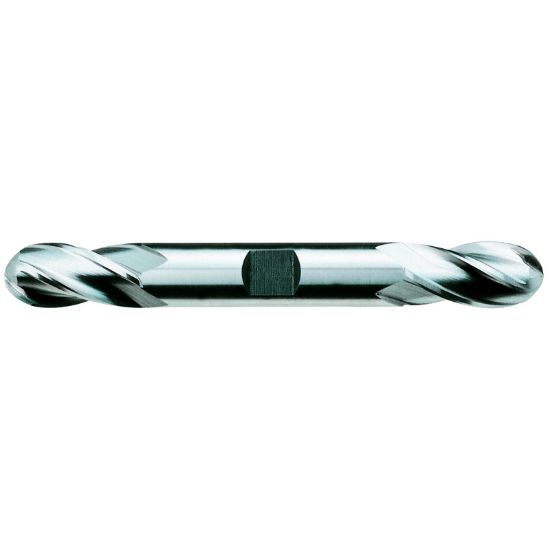

YG-1 46289CE DIA 1/8 SH 0.3750 LOC 0.3750 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt TiAlN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-46289CE
Delivery date: 3-5 days
$57.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Ball Slot Milling, Ball Milling, Copy Milling
Package Size 1
Performance Rating General Performance
Coating TiAlN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 4
Overall Len 3.0620 77.77MM
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
