  • YG-1 45426CN DIA 1 SH 1.00 LOC 1.6250 OAL 5.8750 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

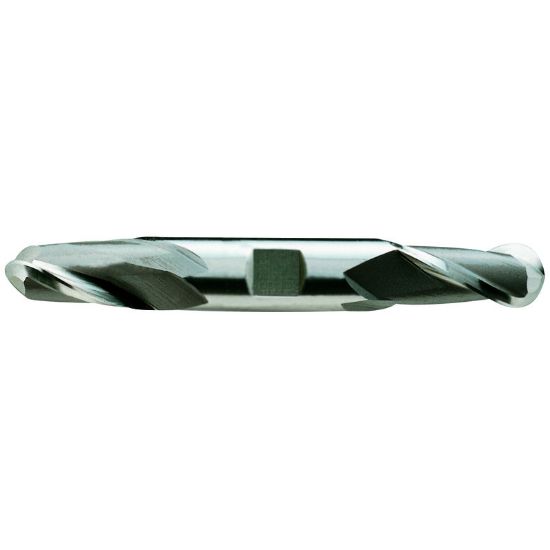

Picture of YG-1 45426CN DIA 1 SH 1.00 LOC 1.6250 OAL 5.8750 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 45426CN DIA 1 SH 1.00 LOC 1.6250 OAL 5.8750 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45426CN
Delivery date: 3-5 days
$135.17

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Milling, Ball Slot Milling, Side Milling, Profile Milling
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
End Of Tool Shape Ball Nose
Overall Len 5.8750 149.23MM
Cutter Style Cobalt Ball Finisher
Cutter Dia 1.0000 25.40MM
Length Type Standard
Tool Material Cobalt
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
