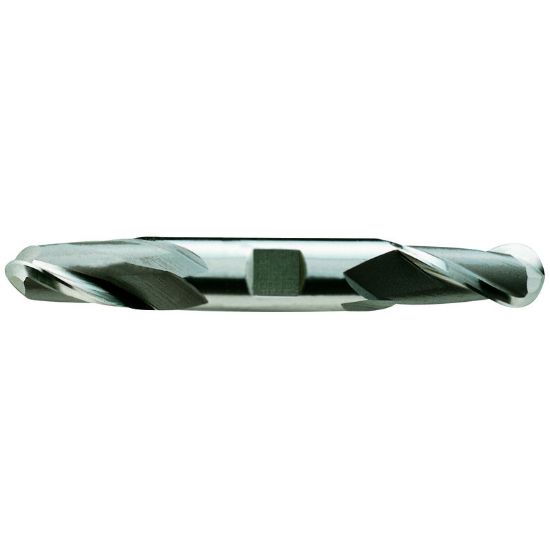

YG-1 45359CC DIA 3/4 SH 0.7500 LOC 1.3125 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45359CC
Delivery date: 3-5 days
$104.55

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiCN
Dimensional Specifications
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Length Of Cut 1.3125 33.34MM
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Helix Angle 30°
Single/Double End Double End
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material Cobalt
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
