  • YG-1 45337CN DIA 5/8 SH 0.6250 LOC 1.1250 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

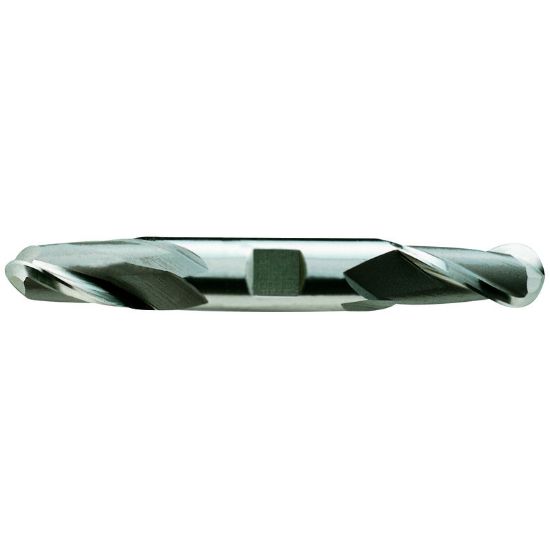

Picture of YG-1 45337CN DIA 5/8 SH 0.6250 LOC 1.1250 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

YG-1 45337CN DIA 5/8 SH 0.6250 LOC 1.1250 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45337CN
Delivery date: 3-5 days
$81.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA No
Package Size 1
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Double End
Flutes/Inserts 2
Length Of Cut 1.1250 28.58MM
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.5000 114.30MM
Cutter Style Cobalt Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
