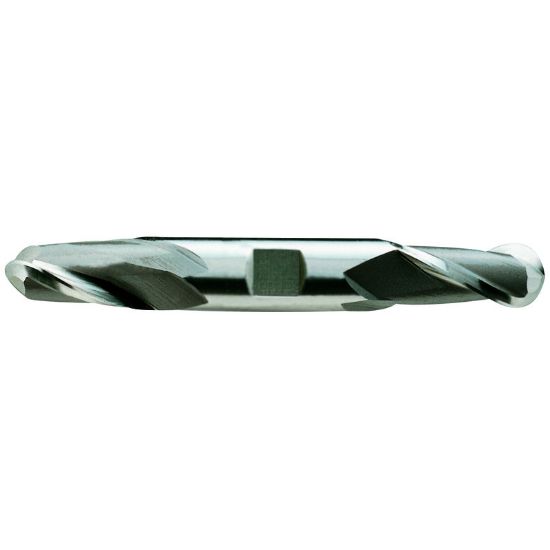

YG-1 45313CC DIA 7/16 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45313CC
Delivery date: 3-5 days
$61.83

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Helix Angle 30°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Single/Double End Double End
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Length Type Standard
Length Of Cut 0.8125 20.64MM
Cutter Style Cobalt Ball Finisher
Cutter Dia 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
