  • YG-1 45313 DIA 7/16 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

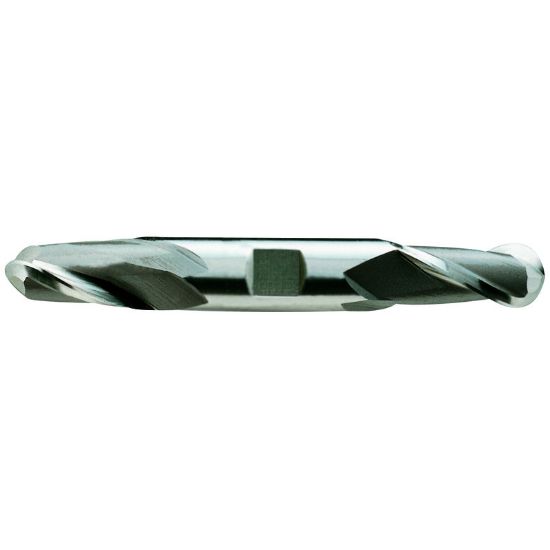

Picture of YG-1 45313 DIA 7/16 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

YG-1 45313 DIA 7/16 SH 0.50 LOC 0.8125 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45313
Delivery date: 3-5 days
$37.79

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Length Of Cut 0.8125 20.64MM
Cutter Style Cobalt Ball Finisher
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutter Dia 0.4375 11.11MM - 7/16
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Single/Double End Double End
Helix Angle 30°
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
