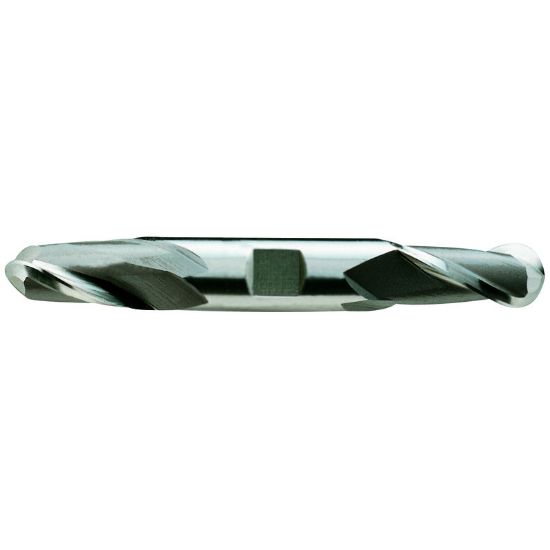

YG-1 45297CC DIA 1/4 SH 0.3750 LOC 0.50 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt TiCN Double End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45297CC
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Profile Milling, Copy Milling, Ball Slot Milling, Side Milling, Ball Milling
Coating TiCN
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Overall Len 3.1250 79.38MM
Length Of Cut 0.5000 12.70MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Helix Angle 30°
Single/Double End Double End
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
