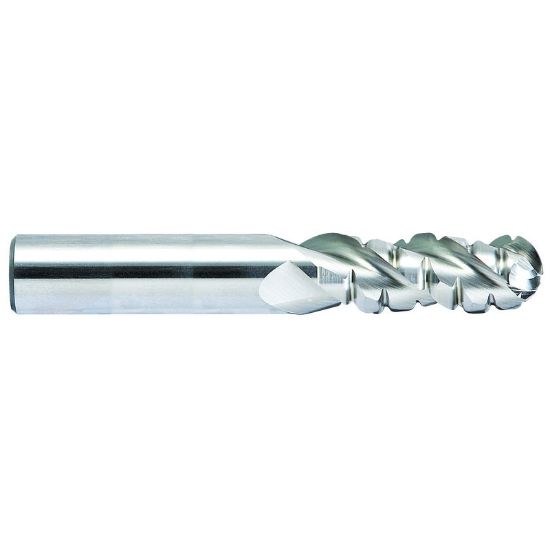

YG-1 45048 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 4.00 End Mill Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45048
Delivery date: 3-5 days
$220.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Copy Milling, Profile Milling, Ball Milling, Side Milling
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Ball Rougher
Inch/Metric Inch
Length Of Cut 1.6250 41.28MM
Flutes/Inserts 3
Length Type Standard
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
