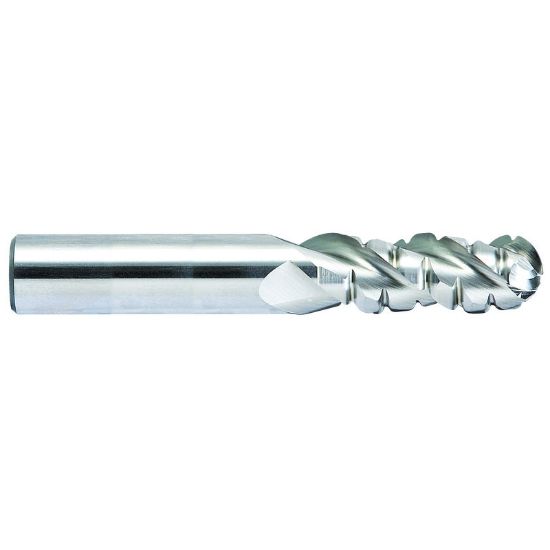

YG-1 45024 DIA 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-45024
Delivery date: 3-5 days
$56.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Overall Len 2.5000 63.50MM
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Length Of Cut 0.8750 22.23MM
Cutter Dia 0.3750 9.53MM - 3/8
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Ball Rougher
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
