  • YG-1 4470 DIA 1-3/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

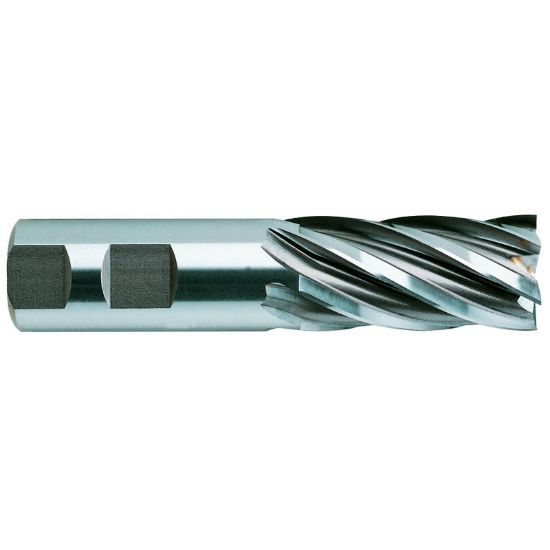

Picture of YG-1 4470 DIA 1-3/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 4470 DIA 1-3/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04470
Delivery date: 3-5 days
$128.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Side Milling, Face Milling, Slot Milling
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.7500 44.45MM - 1-3/4
Helix Angle 30°
Length Type Standard
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Cutter Style Cobalt Finisher
End Of Tool Shape Square
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
