  • YG-1 44426CN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

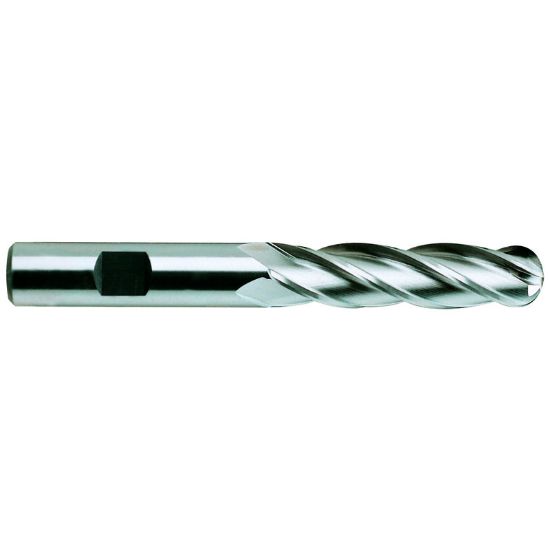

Picture of YG-1 44426CN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 44426CN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44426CN
Delivery date: 3-5 days
$125.79

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling, Side Milling
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Made In USA No
Coating TiN
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Overall Len 6.5000 165.10MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
