  • YG-1 44359CN DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

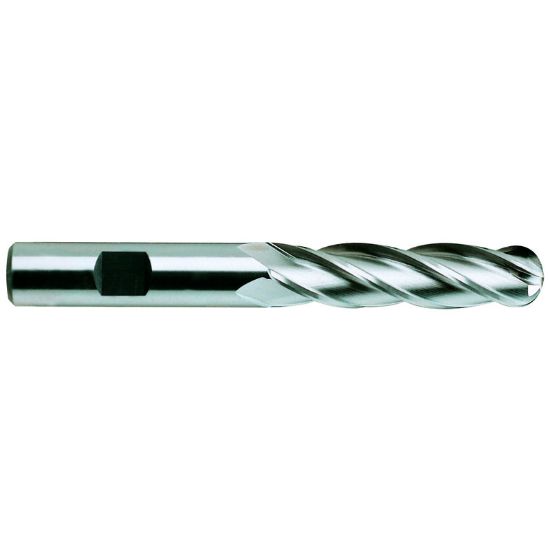

Picture of YG-1 44359CN DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 44359CN DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44359CN
Delivery date: 3-5 days
$71.21

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 3.0000 76.20MM
Length Type Long
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.2500 133.35MM
Helix Angle 30°
Cutter Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Tool Material Cobalt
Single/Double End Single End
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
