  • YG-1 44359 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

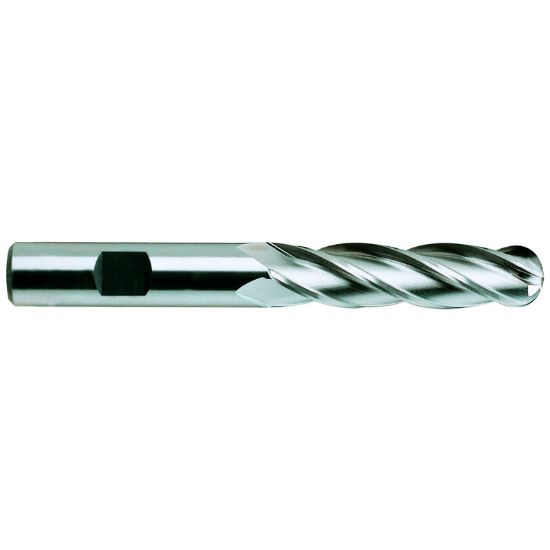

Picture of YG-1 44359 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 44359 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44359
Delivery date: 3-5 days
$66.16

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Slot Milling, Profile Milling, Copy Milling, Side Milling, Ball Milling
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Cutter Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Ball Nose
Tool Material Cobalt
Overall Len 5.2500 133.35MM
Single/Double End Single End
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 3.0000 76.20MM
Length Type Long
Machine Side Connection Type Weldon
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
