  • YG-1 44321 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

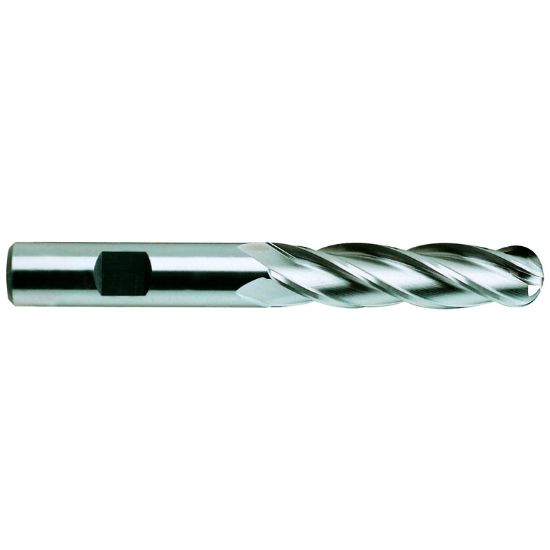

Picture of YG-1 44321 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 44321 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44321
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Ball Slot Milling, Copy Milling, Ball Milling
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Inch/Metric Inch
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 4
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
