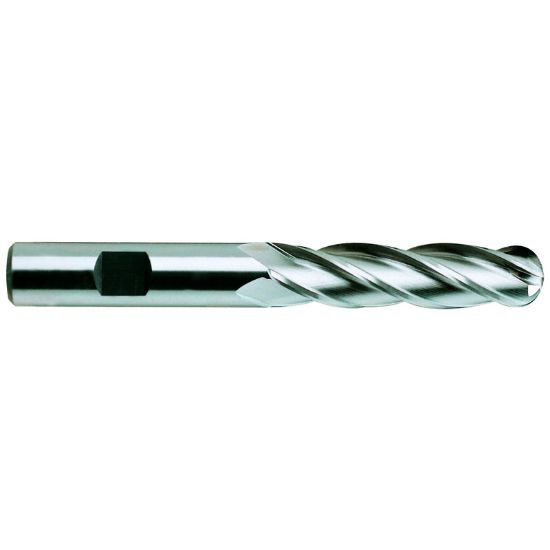

Picture of YG-1 44301 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 44301 DIA 5/16 SH 0.3750 LOC 1.3750 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44301
Delivery date: 3-5 days
$25.15

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Cobalt Ball Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.3750 34.93MM
Inch/Metric Inch
Overall Len 3.1250 79.38MM
Flutes/Inserts 4
Length Type Long
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
