  • YG-1 44297CN DIA 1/4 SH 0.3750 LOC 1.2500 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

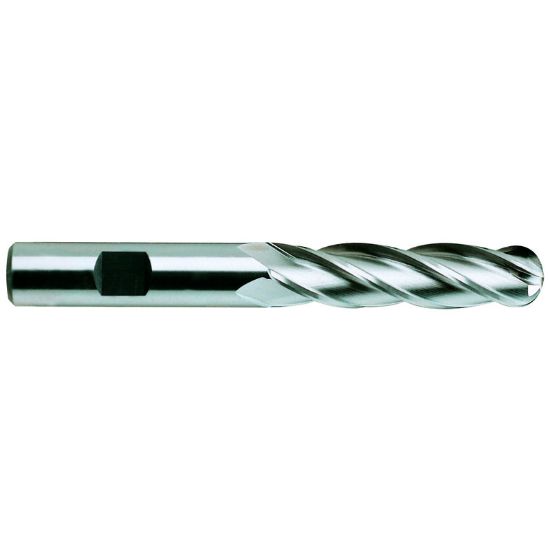

Picture of YG-1 44297CN DIA 1/4 SH 0.3750 LOC 1.2500 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 44297CN DIA 1/4 SH 0.3750 LOC 1.2500 OAL 3.0620 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44297CN
Delivery date: 3-5 days
$35.40

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Ball Milling, Ball Slot Milling, Profile Milling
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 4
Length Type Long
Cutter Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Overall Len 3.0620 77.77MM
Length Of Cut 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
