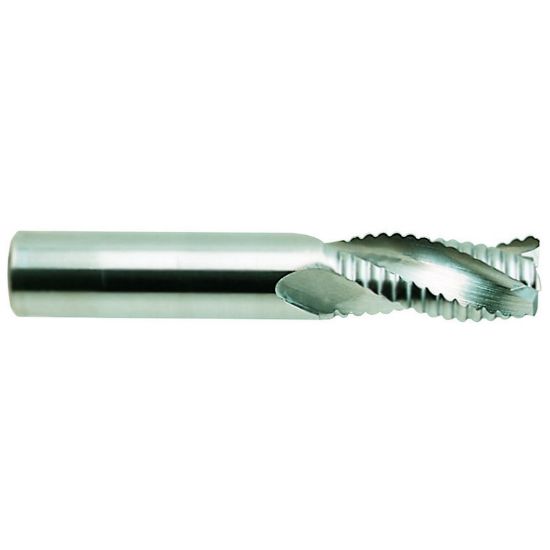

YG-1 44024 DIA 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill Carbide Uncoated Single End Square Sharp Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-44024
Delivery date: 3-5 days
$41.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Application Face Milling, Side Milling
Made In USA No
Dimensional Specifications
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style Carbide Rougher
Overall Len 2.5000 63.50MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Helix Angle 30°
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
