  • YG-1 4357 DIA 3/4 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

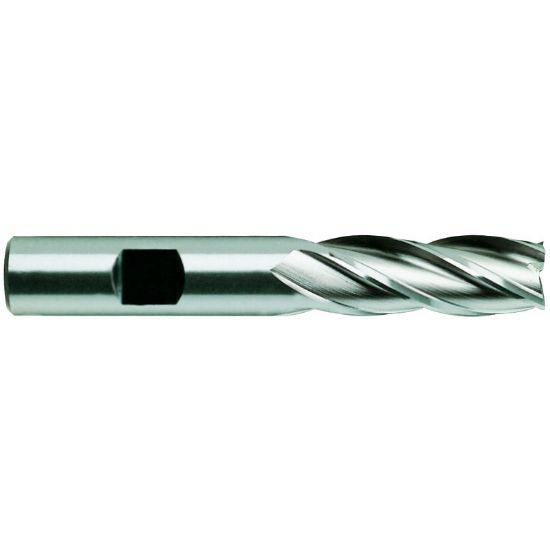

Picture of YG-1 4357 DIA 3/4 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 4357 DIA 3/4 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04357
Delivery date: 3-5 days
$28.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Overall Len 3.6250 92.08MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cutter Style Cobalt Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
