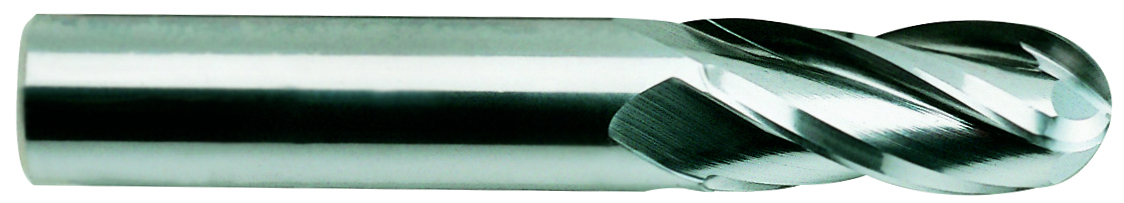

Picture of YG-1 43565TN Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiN Single End Ball NoseBall Carbide EndMillS

YG-1 43565TN Dia 3/16 SH 0.1875 LOC 0.6250 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiN Single End Ball NoseBall Carbide EndMillS

Part Number: YG-43565TN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1210616
Vendor: Sussex Tool and Supply
$24.73

Description

YG-1 Standard Helix End Mill Carbide TiN Ball Nose Ball Standard Flute Flutes 4 Single End CARBIDE ENDMILLS Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.6250 15.88MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TIN
