  • YG-1 4352 DIA 23/32 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

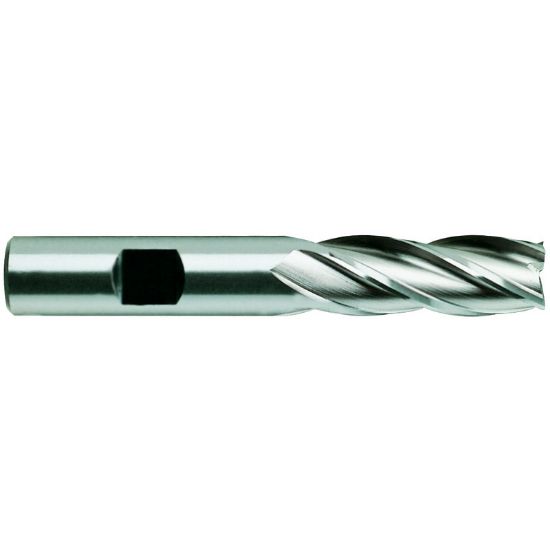

Picture of YG-1 4352 DIA 23/32 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

YG-1 4352 DIA 23/32 SH 0.50 LOC 1.6250 OAL 3.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04352
Delivery date: 3-5 days
$28.25

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling
Made In USA No
Package Size 1
Dimensional Specifications
End Of Tool Shape Square
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.7188 18.26MM - 23/32
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Overall Len 3.6250 92.08MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
