  • YG-1 43477 DIA 2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

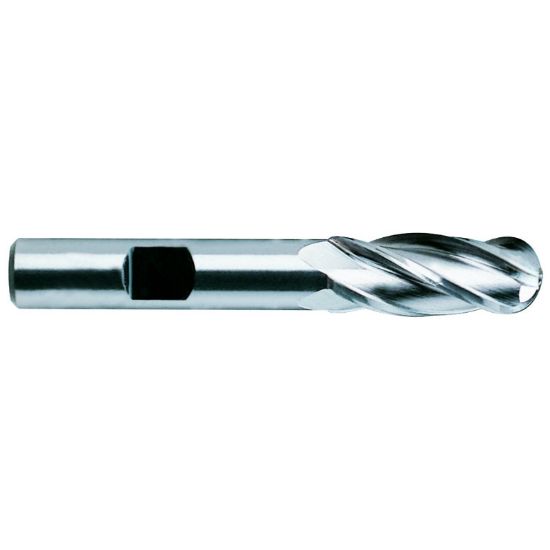

Picture of YG-1 43477 DIA 2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43477 DIA 2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43477
Delivery date: 3-5 days
$226.23

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 1.2500 31.75MM
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
End Of Tool Shape Ball Nose
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Cutter Style Cobalt Ball Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
