  • YG-1 43461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

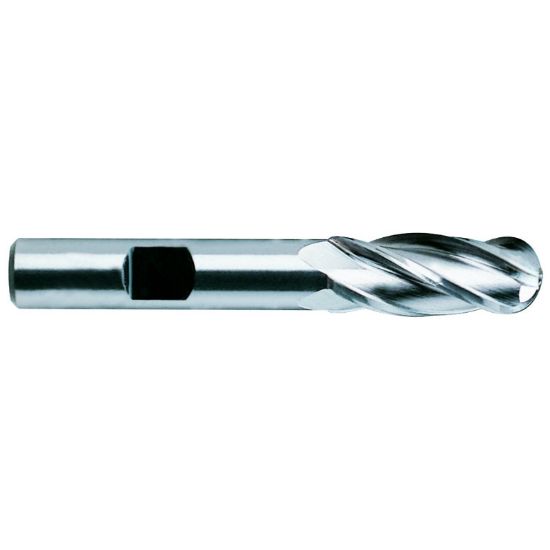

Picture of YG-1 43461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 43461CN DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43461CN
Delivery date: 3-5 days
$194.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Overall Len 4.5000 114.30MM
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Flutes/Inserts 4
Length Type Standard
Helix Angle 30°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
