  • YG-1 43461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

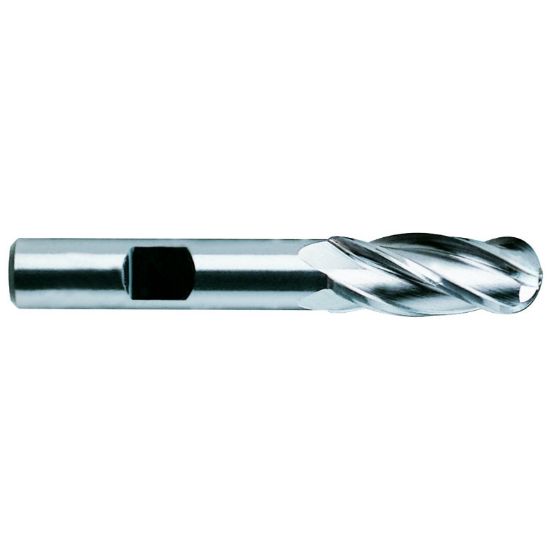

Picture of YG-1 43461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43461 DIA 1-1/2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43461
Delivery date: 3-5 days
$149.47

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Ball Nose
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Flutes/Inserts 4
Length Type Standard
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 1.2500 31.75MM
Overall Len 4.5000 114.30MM
Cutter Style Cobalt Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
