  • YG-1 43445CN DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

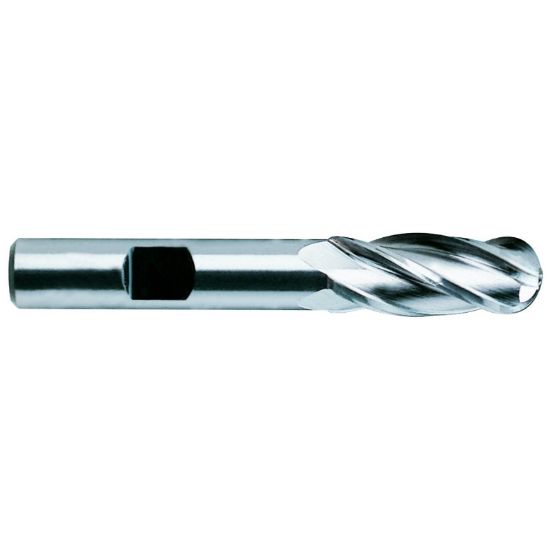

Picture of YG-1 43445CN DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 43445CN DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43445CN
Delivery date: 3-5 days
$163.56

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Ball Milling, Side Milling, Copy Milling
Coating TiN
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Ball Nose
Tool Material Cobalt
Overall Len 3.2500 82.55MM
Single/Double End Single End
Machine Side Connection Size 1.2500 31.75MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
