  • YG-1 43435CN DIA 1-1/8 SH 1.00 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

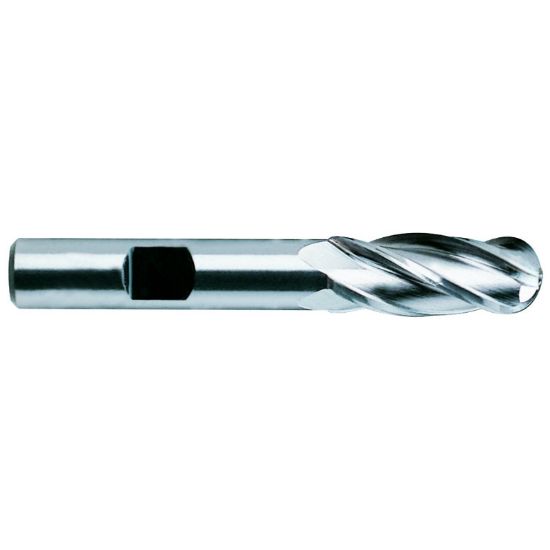

Picture of YG-1 43435CN DIA 1-1/8 SH 1.00 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 43435CN DIA 1-1/8 SH 1.00 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43435CN
Delivery date: 3-5 days
$130.92

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Slot Milling, Ball Milling, Profile Milling, Side Milling, Copy Milling
Coating TiN
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 3.2500 82.55MM
Single/Double End Single End
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutter Style Cobalt Ball Finisher
Cutter Dia 1.1250 28.58MM - 1-1/8
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
