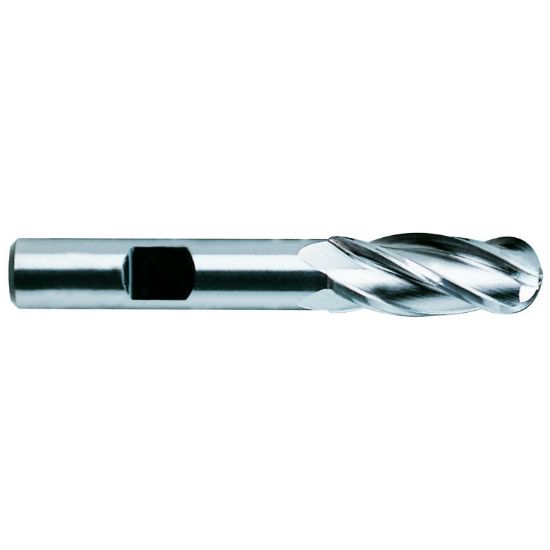

YG-1 43435CF DIA 1-1/8 SH 1.00 LOC 2.00 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43435CF
Delivery date: 3-5 days
$137.89

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Application Copy Milling, Side Milling, Profile Milling, Ball Slot Milling, Ball Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
End Of Tool Shape Ball Nose
Cutter Dia 1.1250 28.58MM - 1-1/8
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Flutes/Inserts 4
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Cobalt Ball Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Overall Len 3.2500 82.55MM
Single/Double End Single End
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
