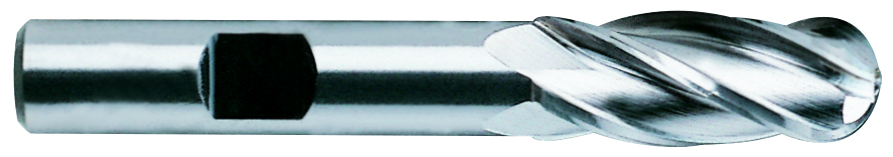

Picture of YG-1 43435 Dia 1-1/8 SH 1.00 LOC 2.00 OAL3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall General Purpose

YG-1 43435 Dia 1-1/8 SH 1.00 LOC 2.00 OAL3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall General Purpose

Part Number: YG-43435
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$157.11
SKU: 1202443

Description

YG-1 Standard Helix End Mill Cobalt Uncoated Ball Nose Ball Standard Flute Flutes 4 Single End GENERAL Purpose Cobalt
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.1250 79.38MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.1250 28.58MM - 1-1/8
Length Of Cut 2.0000 50.80MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Cobalt
Cutting Edge Mat Cobalt
