  • YG-1 43394 DIA 7/8 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

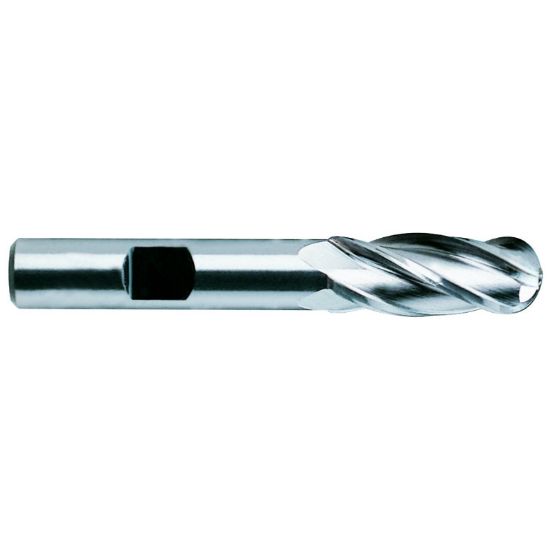

Picture of YG-1 43394 DIA 7/8 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43394 DIA 7/8 SH 0.8750 LOC 1.8750 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43394
Delivery date: 3-5 days
$68.27

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 0.8750 22.23MM - 7/8
Helix Angle 30°
Machine Side Connection Size 0.8750 22.23MM
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Inch/Metric Inch
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Overall Len 4.1250 104.78MM
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 4
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
