  • YG-1 43359 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

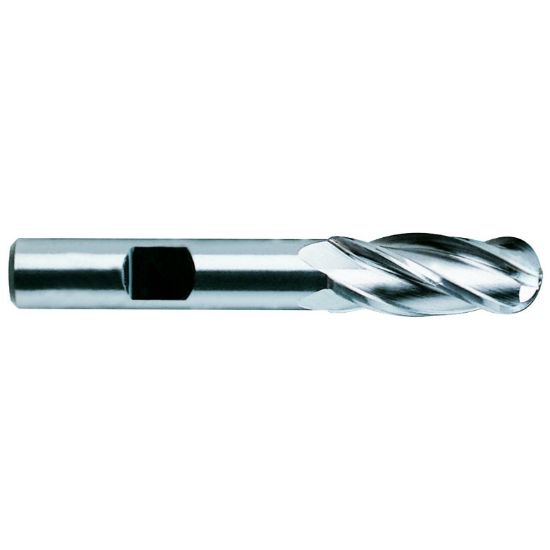

Picture of YG-1 43359 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43359 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 2.6250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43359
Delivery date: 3-5 days
$54.91

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Copy Milling, Side Milling, Ball Slot Milling, Profile Milling, Ball Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Overall Len 2.6250 66.68MM
Helix Angle 30°
Cutter Style Cobalt Ball Finisher
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
