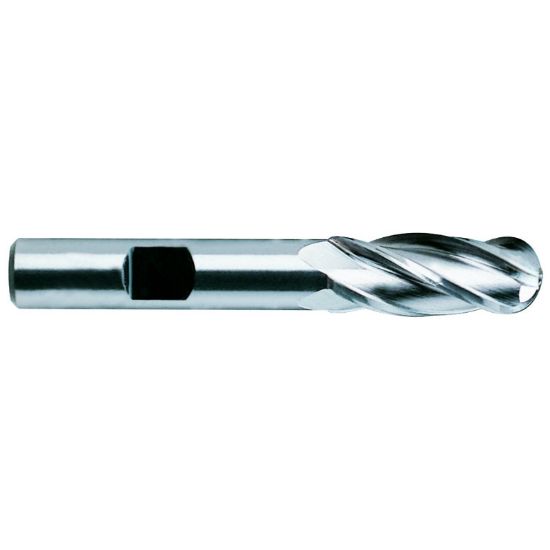

YG-1 43350CC DIA 11/16 SH 0.6250 LOC 1.6250 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43350CC
Delivery date: 3-5 days
$73.07

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Made In USA No
Coating TiCN
Package Size 1
Dimensional Specifications
Cutter Style Cobalt Ball Finisher
Cutter Dia 0.6875 17.46MM - 11/16
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Overall Len 2.5000 63.50MM
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Length Of Cut 1.6250 41.28MM
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
