  • YG-1 43321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

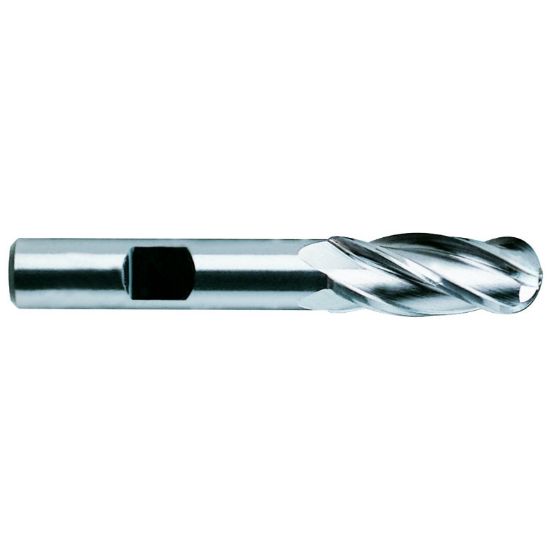

Picture of YG-1 43321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

YG-1 43321CN DIA 1/2 SH 0.50 LOC 1.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43321CN
Delivery date: 3-5 days
$38.84

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Slot Milling, Ball Milling, Profile Milling, Copy Milling
Made In USA No
Shipping State Illinois
Coating TiN
Package Size 1
Dimensional Specifications
Cutter Style Cobalt Ball Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Length Of Cut 1.2500 31.75MM
Flutes/Inserts 4
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Single/Double End Single End
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
