  • YG-1 43321CH DIA 1/2 SH 0.50 LOC 1.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Ball Nose General Purpose

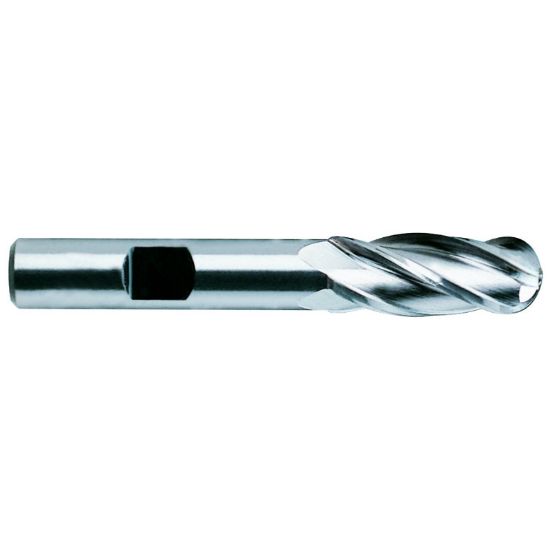

Picture of YG-1 43321CH DIA 1/2 SH 0.50 LOC 1.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Ball Nose General Purpose

YG-1 43321CH DIA 1/2 SH 0.50 LOC 1.2500 OAL 2.50 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43321CH
Delivery date: 3-5 days
$43.71

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Coating Hardslick
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
End Of Tool Shape Ball Nose
Flutes/Inserts 4
Length Type Standard
Overall Len 2.5000 63.50MM
Length Of Cut 1.2500 31.75MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
