  • YG-1 43305 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

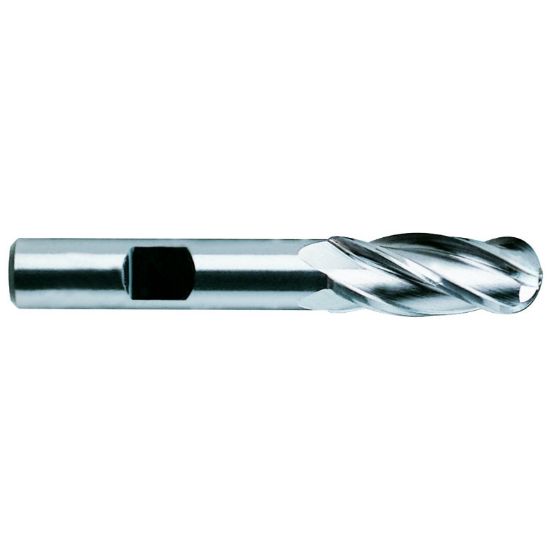

Picture of YG-1 43305 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43305 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43305
Delivery date: 3-5 days
$19.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Side Milling, Ball Milling, Copy Milling
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Tool Material Cobalt
Overall Len 3.2500 82.55MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.7500 19.05MM
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
