  • YG-1 43301 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

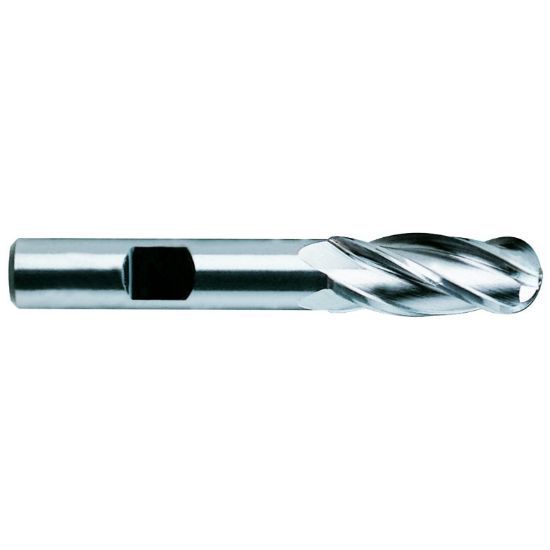

Picture of YG-1 43301 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43301 DIA 5/16 SH 0.3750 LOC 0.7500 OAL 3.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43301
Delivery date: 3-5 days
$19.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ball Milling, Ball Slot Milling, Side Milling, Profile Milling, Copy Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Ball Nose
Overall Len 3.1250 79.38MM
Cutter Dia 0.3125 7.94MM - 5/16
Cutter Style Cobalt Ball Finisher
Machine Side Connection Type Weldon
Helix Angle 30°
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
