  • YG-1 43289 DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

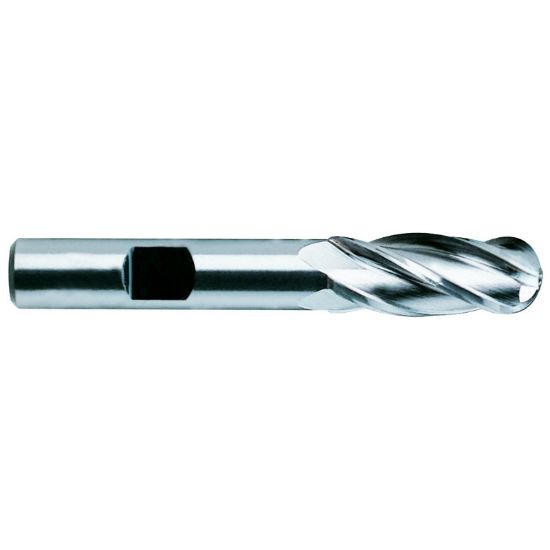

Picture of YG-1 43289 DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 43289 DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3125 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-43289
Delivery date: 3-5 days
$19.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3125 58.74MM
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
