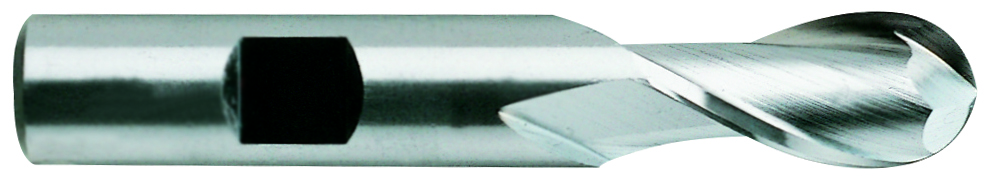

Picture of YG-1 42426CN Dia 1 SH 1.00 LOC 2.50 OAL7.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball NoseBall General Purpose

YG-1 42426CN Dia 1 SH 1.00 LOC 2.50 OAL7.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball NoseBall General Purpose

Part Number: YG-42426CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1202381
Vendor: Sussex Tool and Supply
$139.05
YG-1 Standard Helix End Mill Cobalt TiN Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL Purpose Cobalt Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 7.2500 184.15MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
Neck Length 5.0000 127.00MM
