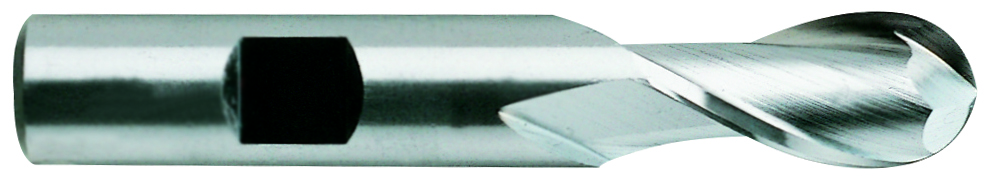

Picture of YG-1 42289CN Dia 1/8 SH 0.3750 LOC 0.3750 OAL2.3750 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball NoseBall General Purpose

YG-1 42289CN Dia 1/8 SH 0.3750 LOC 0.3750 OAL2.3750 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball NoseBall General Purpose

Part Number: YG-42289CN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1202336
Vendor: Sussex Tool and Supply
$43.59

Description

YG-1 Standard Helix End Mill Cobalt TiN Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL Purpose Cobalt Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.3750 9.53MM
Neck Length 0.8120 20.62MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Cobalt
Cutting Edge Mat Cobalt
Coating TIN
