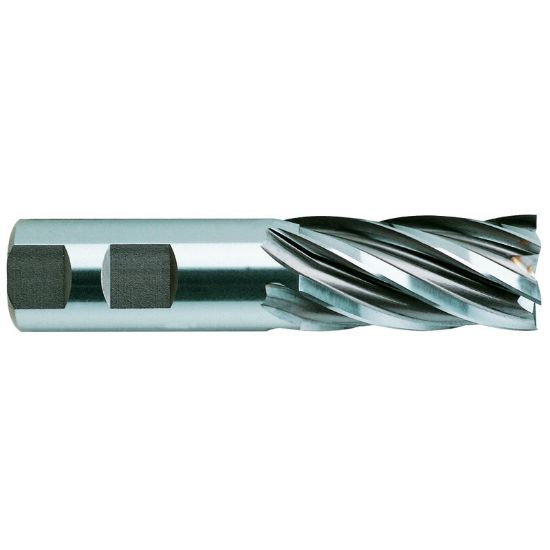

YG-1 4171 DIA 1 SH 0.6250 LOC 1.8750 OAL 4.00 End Mill Standard Flute Standard Helix HSS Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04171
Delivery date: 3-5 days
$33.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Tool Material High Speed Steel
Length Of Cut 1.8750 47.63MM
Length Type Standard
Machine Side Connection Size 0.6250 15.88MM
Cutter Style HSS Finisher
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.0000 101.60MM
Helix Angle 30°
End Of Tool Shape Square
Inch/Metric Inch
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
