  • YG-1 41453 DIA 1-3/8 SH 1.2500 LOC 2.50 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

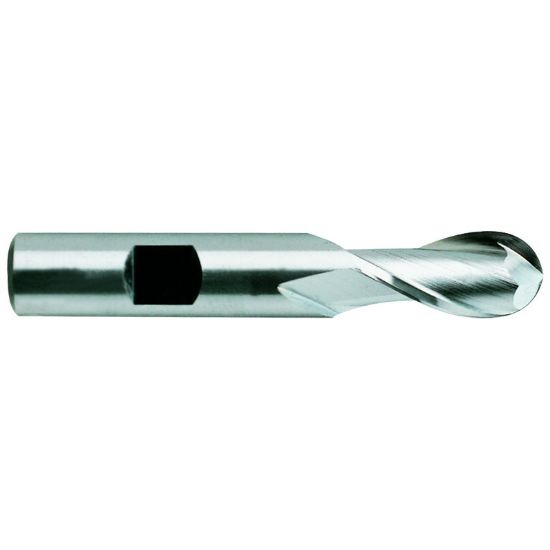

Picture of YG-1 41453 DIA 1-3/8 SH 1.2500 LOC 2.50 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 41453 DIA 1-3/8 SH 1.2500 LOC 2.50 OAL 5.00 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-41453
Delivery date: 3-5 days
$116.47

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Profile Milling, Ball Milling, Copy Milling, Ball Slot Milling, Side Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Length Of Cut 2.5000 63.50MM
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
End Of Tool Shape Ball Nose
Inch/Metric Inch
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Helix Angle 30°
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
