  • YG-1 41449 DIA 1-3/8 SH 0.7500 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

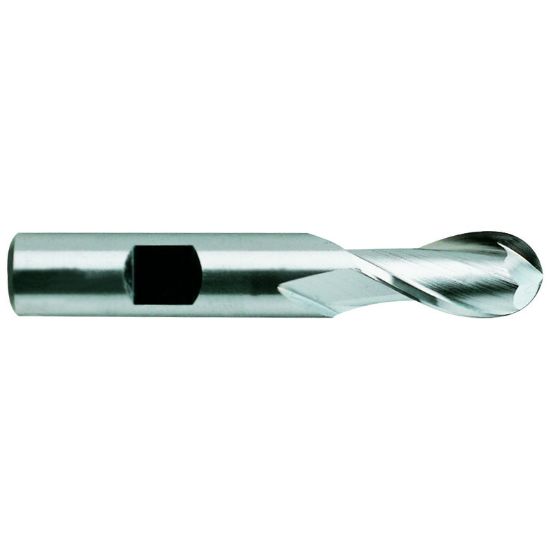

Picture of YG-1 41449 DIA 1-3/8 SH 0.7500 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 41449 DIA 1-3/8 SH 0.7500 LOC 1.6250 OAL 4.1250 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-41449
Delivery date: 3-5 days
$111.67

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Inch/Metric Inch
Overall Len 4.1250 104.78MM
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutter Style Cobalt Ball Finisher
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Length Type Standard
Cutter Dia 1.3750 34.93MM - 1-3/8
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
