  • YG-1 41439 DIA 1-1/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

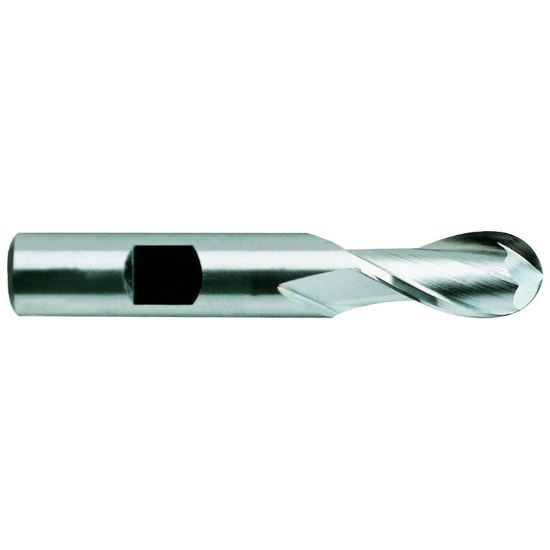

Picture of YG-1 41439 DIA 1-1/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 41439 DIA 1-1/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-41439
Delivery date: 3-5 days
$93.75

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ball Milling, Side Milling, Ball Slot Milling, Profile Milling, Copy Milling
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
End Of Tool Shape Ball Nose
Overall Len 3.8750 98.43MM
Length Type Standard
Machine Side Connection Type Weldon
Machine Side Connection Size 0.7500 19.05MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Helix Angle 30°
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutter Style Cobalt Ball Finisher
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
