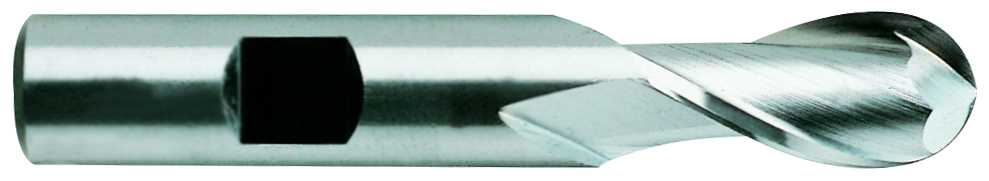

Picture of YG-1 41431CN Dia 1-1/8 SH 0.7500 LOC 1.6250 OAL3.8750 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball NoseBall General Purpose

YG-1 41431CN Dia 1-1/8 SH 0.7500 LOC 1.6250 OAL3.8750 End Mill Standard Flute Standard Helix Cobalt TiN Single End Ball NoseBall General Purpose

Part Number: YG-41431CN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$142.70
SKU: 1202291

Description

YG-1 Standard Helix End Mill Cobalt TiN Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL Purpose Cobalt Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.8750 98.43MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.1250 28.58MM - 1-1/8
Length Of Cut 1.6250 41.28MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Cobalt
Cutting Edge Mat Cobalt
Coating TIN
