  • YG-1 41431 DIA 1-1/8 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

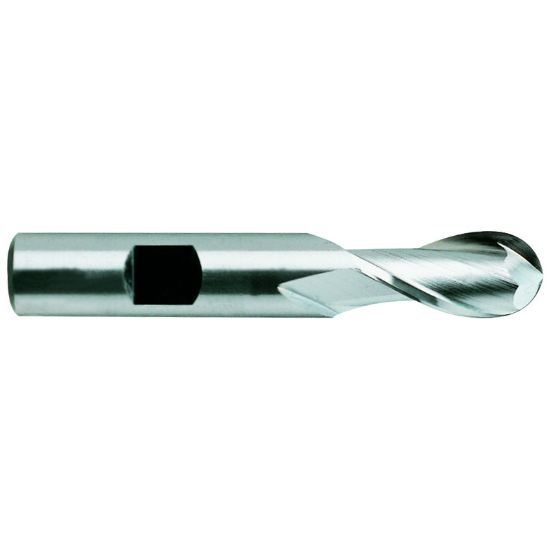

Picture of YG-1 41431 DIA 1-1/8 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 41431 DIA 1-1/8 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-41431
Delivery date: 3-5 days
$80.59

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Profile Milling, Copy Milling, Ball Slot Milling, Side Milling, Ball Milling
Package Size 1
Dimensional Specifications
Overall Len 3.8750 98.43MM
Length Type Standard
Cutter Style Cobalt Ball Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutter Dia 1.1250 28.58MM - 1-1/8
Inch/Metric Inch
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Machine Side Connection Type Weldon
Helix Angle 30°
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
