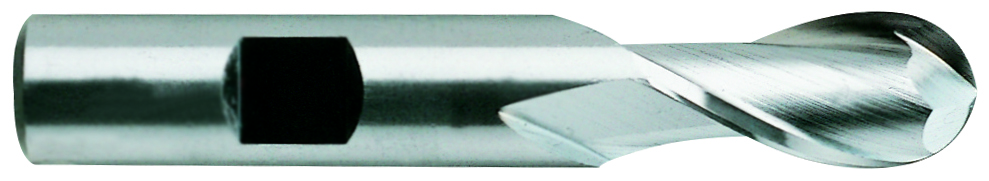

Picture of YG-1 41394CC Dia 7/8 SH 0.8750 LOC 2.00 OAL4.2500 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Ball NoseBall General Purpose

YG-1 41394CC Dia 7/8 SH 0.8750 LOC 2.00 OAL4.2500 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Ball NoseBall General Purpose

Part Number: YG-41394CC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1202275
Vendor: Sussex Tool and Supply
$106.45
YG-1 Standard Helix End Mill Cobalt TiCN Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL Purpose Cobalt Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.8750 22.23MM
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Flutes/Inserts 2
Tool Dia 0.8750 22.23MM - 7/8
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
