  • YG-1 41394 DIA 7/8 SH 0.8750 LOC 2.00 OAL 4.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

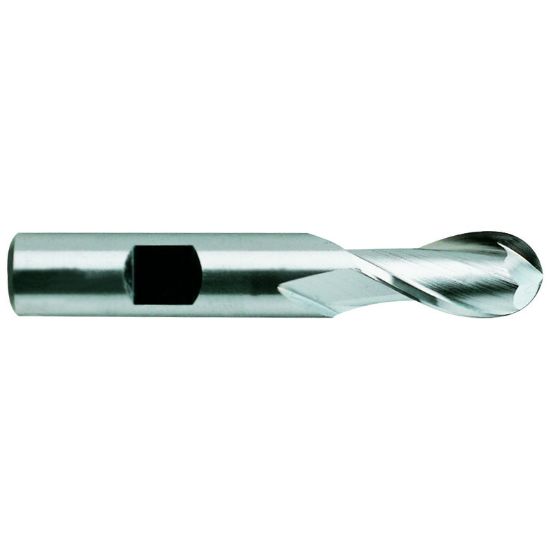

Picture of YG-1 41394 DIA 7/8 SH 0.8750 LOC 2.00 OAL 4.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

YG-1 41394 DIA 7/8 SH 0.8750 LOC 2.00 OAL 4.2500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball Nose General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-41394
Delivery date: 3-5 days
$65.28

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Copy Milling, Ball Milling, Profile Milling, Side Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Overall Len 4.2500 107.95MM
Flutes/Inserts 2
Machine Side Connection Size 0.8750 22.23MM
Cutter Style Cobalt Ball Finisher
Cutter Dia 0.8750 22.23MM - 7/8
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
End Of Tool Shape Ball Nose
Machine Side Connection Type Weldon
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
