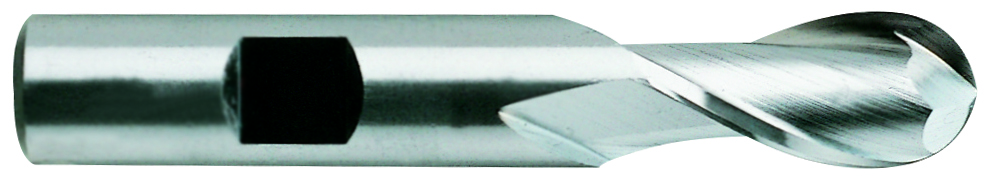

Picture of YG-1 41301 Dia 5/16 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall General Purpose

YG-1 41301 Dia 5/16 SH 0.3750 LOC 0.7500 OAL2.50 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Ball NoseBall General Purpose

Part Number: YG-41301

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1202224
Vendor: Sussex Tool and Supply
$18.02
YG-1 Standard Helix End Mill Cobalt Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End GENERAL Purpose Cobalt
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Cobalt
Cutting Edge Mat Cobalt
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cutter Style Cobalt Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
