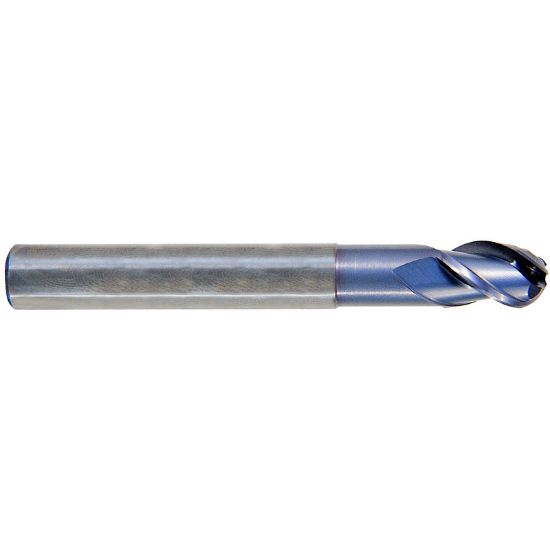

YG-1 38595 DIA 5/8 SH 0.6250 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-38595
Delivery date: 3-5 days
$73.08

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Ball Milling, Side Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.6250 15.88MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Neck Length 1.5000 38.10MM
Helix Angle 40°
Cutter Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
