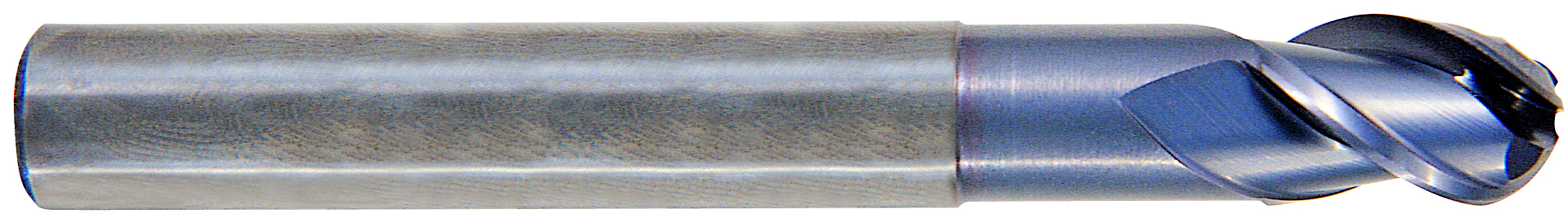

Picture of YG-1 38595 Dia 5/8 SH 0.6250 LOC 1.00 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Power End Mill

YG-1 38595 Dia 5/8 SH 0.6250 LOC 1.00 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Power End Mill

Part Number: YG-38595

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1216166
Vendor: Sussex Tool and Supply
$82.98
YG-1 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 3 Single End Alu-Power End Mill Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 40
Center Cutting Center Cutting
Neck Length 1.5000 38.10MM
