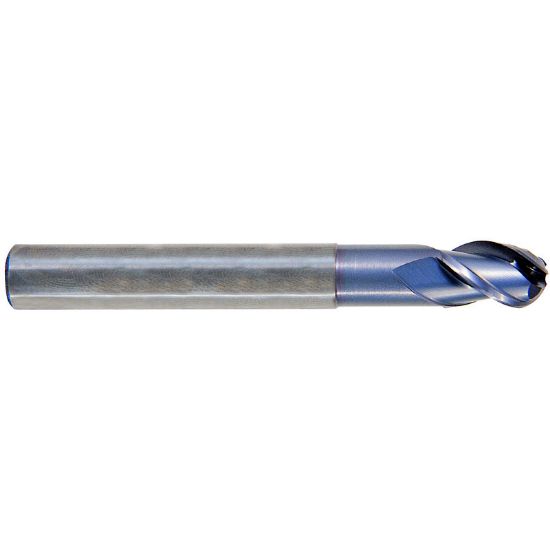

YG-1 38593 DIA 1/2 SH 0.50 LOC 0.7500 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Power End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-38593
Delivery date: 3-5 days
$47.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Neck Length 1.3750 34.93MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 0.7500 19.05MM
Helix Angle 40°
Single/Double End Single End
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
